Description

Technical Parameters

Product Features:

1. Smooth edge line of pressed products, no burr.
2. Pressing parameters are easy to adjust, blind hole depth and density can be adjusted at will.
3. Pressed products after sintering flatness up to 0.02mm, no need to grind and machining, product costs are greatly reduced.
4. The mold is easy to change, and there is more space for mold loading.
5. Safety: the running parts are fully enclosed to exclude operation safety hazards.
6. Environmental protection: fully sealed, no oil leakage, no leakage of powder, vibration and noise is small, the working environment is environmentally friendly and pollution-free.
7. Maintainability: stable quality, convenient regular maintenance, long maintenance cycle.

Machine Type	Unit	JM-150S		JM-300S		JM-400S		JM-550S		JM-850S		JM-1000S		JM-1200S		JM-1600S		JM-2000S		JM-2500S		JM-3000S		JM-4000S		JM-5000S		JM-6000S		JM-7000S
Screw Diameter	mm	22	25	25	28	28	32	32	35	35	40	40	45	45	50	50	55	55	60	65	70	75	85	80	90	90	100	95	105	100	110
Injection Pressure	kgf/cm²	1851	1433	1815	1446	2000	1531	2051	1713	1943	1488	1890	1493	1918	1553	1855	1533	2036	1710	2326	2005	2160	1685	1903	1503	1503	1218	1560	1278	1409	1164
Theoretical Injection Volume	cm³	38	49	54	68	86	113	129	154	173	226	226	286	315	391	470	568	712	847	1376	1595	1830	2350	2080	2640	2640	3259	3890	4760	4315	5220
Max.Shot Weight(PS)	g/oz	37/1.3	48/1.7	53/1.9	66/2.4	84/3	110/4	124/4.5	149/5	168/6.1	220/8	220/8	279/10	307/11	380/14	455/16	547/19	688/24	818/29	1328/48	1540/56	1771/64	2270/83	2015/73	2550/93	2574/93	3187/115	3760/137	4600/168	4172/152	5049/184
Injection Rate	cm³/s	26	34	42	53	46	59	53	63	78	102	116	147	149	182	150	180	155	184	136	158	200	250	245	310	465	574	450	550	496	601
Screw stroke	mm	100		110		140		160		180		180		240		240		300		415		415		415		415		550		550
Screw rotation speed	rpm	0-200		0-200		0-200		0-180		0-220		0-275		0-370		0-235		0-220		0-200		0-240		0-240		0-240		0-180		0-180
Clamping Force	tom	15		30		40		55		85		100		120		160		200		250		300		400		500		600		600
Min.Mold Height	mm	100		120		200		220		250		280		300		300		300		400		400		400		400		500		500
Opening Stroke	mm	180		180		200		200		250		280		300		300		400		400		400		400		400		500		500
Max.Opening Distance	mm	280		300		400		420		500		560		600		600		700		800		800		800		800		1000		1000
Distance Between Tie Bar	mm	275x135		355x205		400x250		500x340		560x340		580x420		610x510		750x580		860x530		800x530		890x590		890x590		890x590		1110x660		1110x660
Platen Size	mm	430x290		520x370		580x430		720x560		795x575		830x670		830x740		1000x810		1130x800		1070x800		1180x880		1180x880		1180x880		1460x1010		1460x1010
Ejector Stroke	mm	35		35		35		45		55		65		75		150		150		150		150		150		150		150		150
Ejector Force	tom	1.2		1.2		2.3		2.3		4		5.4		5.4		11		11		11		11		11		11		11		11
Max.Hydraulic Preesure	kgf/cm²	140		140		140		140		140		140		140		140		140		140		140		140		140		140		140
Oil Tank Capacity	L	120		150		180		230		280		350		400		500		600		600		700		700		700		800		800
Pump Motor Power	kw	3		4		5.5		7.5		11		15		15		18.5		22		22		30		30		45		55		55
Barrel Heating Power	kw	3		3.5		4.2		5.4		5.4		6.3		10		12		14		16		17		17		17		20		20
Machine Weight	kg	900		1000		1500		2200		3000		4000		7000		7500		8000		8000		11000		12000		13000		15000		16000
Machine Dimensions	m	/		/		/		/		/		/		/		/		/		/		/		/		/		/

Hot Tags: electronica molding machine, China electronica molding machine manufacturers, suppliers, factory, Plastic Injection Molding Machine For Home, Plastic Injection Molders, Precision Injection Molding Machine, CNC Plastic Injection Moulding Machine, Plastic Chair Moulding Machine, Horizontal Injection Machine

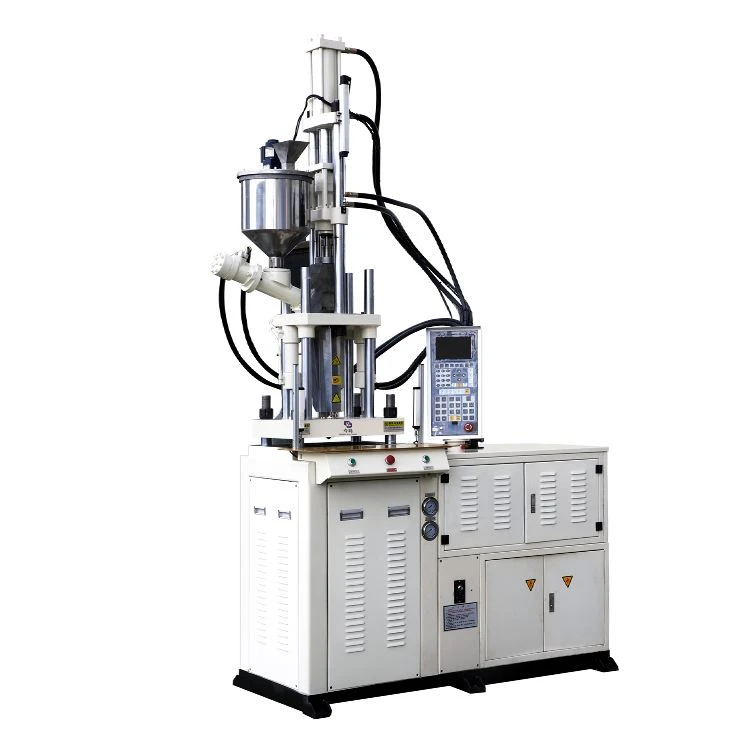

Electronica Molding Machine
