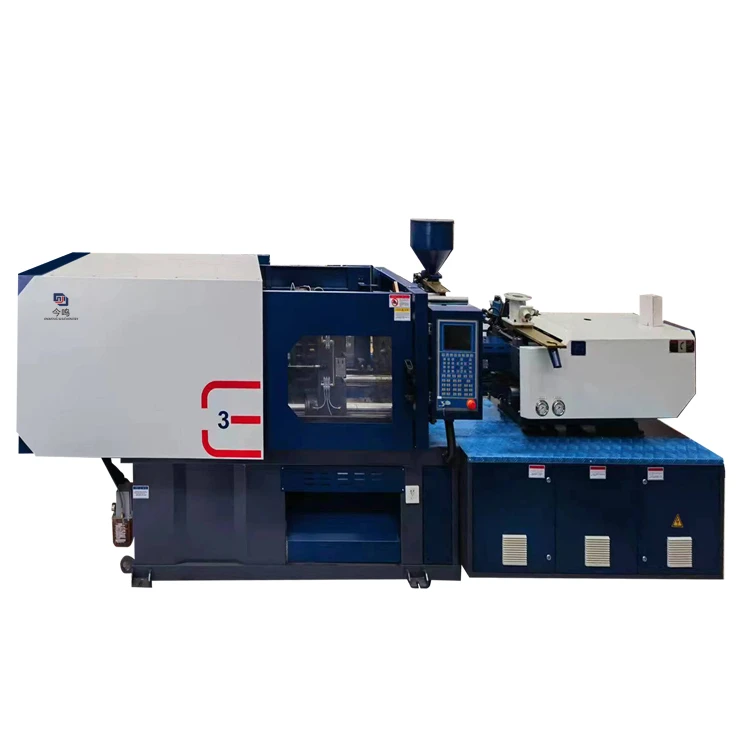

Product Features:
1. High speed is mainly reflected in the injection of glue, can choose high speed and high pressure for injection.
2. Adopting energy storage device, the injection speed can reach 600mm/sec.
3. Rapid injection, fast molding, short production cycle.
4. It is suitable for the stable selection of thin molding products (electronic component connectors, computer terminals) and other products.
5. Diversified oil system design (semi-closed, servo or high-speed injection) can be matched with customer's product requirements.
Hot Tags: thin wall injection molding machine, China thin wall injection molding machine manufacturers, suppliers, factory, Hybrid Injection Molding Machine, pu injection molding machine, bottle cap injection molding machine, accumulator injection molding machine, Electronica Injection Molding Machine, Shoe Sole Injection Moulding Machine
| DESCRIPTION | UNIT | ZX-268T | ZX-300T | ZX-350T | ZX-428T | ZX-538T | ZX-650T | |||||||||||||
| GROUP | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | ||
| INJECTION UNIT | Screw Diameter | mm | 55 | 60 | 65 | 60 | 65 | 70 | 65 | 70 | 75 | 75 | 80 | 85 | 80 | 85 | 90 | 85 | 90 | 100 |
| Screw L/D Ratio | L/D | 24 | 22 | 20.5 | 22 | 20.5 | 19 | 22 | 20 | 19 | 23 | 22 | 21 | 22 | 20.7 | 19.5 | 24.6 | 23.2 | 20.9 | |
| Shot Volume | cm3 | 593.6 | 706.5 | 829.1 | 819.5 | 961.8 | 1115.4 | 1077.9 | 1250.1 | 1435 | 1633.7 | 1858.8 | 2098.5 | 1959.3 | 2211.9 | 2479.8 | 2892.5 | 3242.8 | 4003.5 | |
| Actual Injection Volume | g | 540.2 | 642.9 | 754.5 | 745.7 | 875.2 | 1015 | 980.9 | 1137.6 | 1305.9 | 1486.9 | 1691.5 | 1909.6 | 1783 | 2012.8 | 2256.6 | 2632.2 | 2950.9 | 3643.2 | |
| Injection Pressure | kg/cm² | 173 | 148 | 126 | 148 | 126 | 109 | 160 | 139 | 120 | 156 | 137 | 120 | 148 | 130 | 116 | 142 | 127 | 103 | |
| CLAMPING UNIT | Clamp Tonnage | KN | 2680 | 3000 | 3500 | 4280 | 5380 | 6500 | ||||||||||||
| Toggle Stroke | mm | 550 | 580 | 625 | 750 | 770 | 920 | |||||||||||||
| Space Between Tie-Bars | mm | 580×580 | 630×630 | 670×670 | 760×760 | 830×830 | 880×880 | |||||||||||||
| Max. Mould Thickness | mm | 650 | 700 | 800 | 820 | 850 | 880 | |||||||||||||
| Min Mould Thickness | mm | 220 | 220 | 250 | 280 | 300 | 380 | |||||||||||||
| Ejector Stroke | mm | 160 | 160 | 165 | 180 | 240 | 240 | |||||||||||||
| Knockout Quantity | P | 9 | 9 | 13 | 13 | 13 | 21 | |||||||||||||
| Ejector Tonnage | KN | 62 | 62 | 89 | 110 | 133 | 158 | |||||||||||||
| OTHERS | Machine Weight | T | 7.8 | 9.1 | 11.9 | 16.5 | 19 | 21 | ||||||||||||
| Motor Power | kW | 30 | 30 | 37 | 45 | 30+30 | 37+37 | |||||||||||||
| Heater Power | kW | 17.4 | 17.4 | 18.5 | 31.3 | 33 | 43 | |||||||||||||
| Overall Dimensiom | m | 6.1×1.5×2.3 | 6.4×1.5×2.4 | 7.5×1.9×2.4 | 7.8×2.0×2.3 | 8.1×2×2.3 | 9.2×2.1×2.4 | |||||||||||||
| Max. Pump Pressure | Mpa | 14 | 14 | 14 | 14 | 14 | 14 | |||||||||||||
