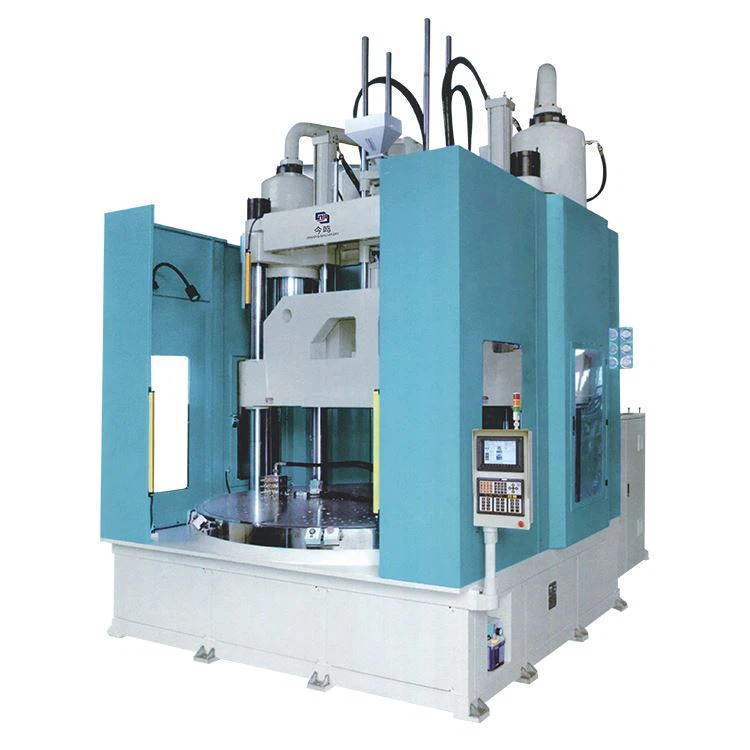

Product Features:
1. Vertical mold clamping with direct pressure, vertical injection, not occupying space; three-stage temperature control/injection speed/back pressure and other non-stage adjustment, suitable for all kinds of simulation plant injection molding.
2. Fast mold clamping / low pressure slow shutdown, mold clamping abnormal timing platform automatically emergency mold opening, this special safety design, the mold can play a protective role.
3. Lower mold fixed/upper mold movable type, good positioning of molding inserts in the mold. The finished product has a hydraulic ejector device to take out the finished product is very convenient and easy.
4. Electric control fittings/hydraulic fittings adopt domestic and foreign famous brand, precision and durable running noise is low.
Hot Tags: plastic injection molding equipment, China plastic injection molding equipment manufacturers, suppliers, factory, Thin Wall Injection Moulding Machine, Electric Plastic Injection Molding Machine, PASL Injection Moulding Machine, Precision Plastic Injection Molding, Automatic Plastic Moulding Machine, Double Colour Injection Moulding Machine
| DESCRIPTION | UNIT | JM-1200R | JM-1600R | JM-2000R | JM-2500R | JM-3000R | JM-4000R | |||||||||||||
| INJECTION UNIT | Screw Diameter | mm | 25 | 28 | 32 | 30 | 35 | 40 | 35 | 40 | 45 | 40 | 45 | 50 | 45 | 50 | 55 | 60 | 65 | 70 |
| Injection Pressure | kg/cm² | 2509 | 2000 | 1531 | 2333 | 1714 | 1680 | 2468 | 1890 | 1493 | 2327 | 1839 | 1489 | 2212 | 1792 | 1480 | 2240 | 1908 | 1645 | |
| Theoretical Injection Volume | cm³ | 69 | 86 | 112 | 113 | 154 | 226 | 192 | 251 | 318 | 276 | 350 | 432 | 381 | 471 | 570 | 848 | 995 | 1154 | |
| Max.Shot Weight(PS) | g/oz | 67/2.4 | 84/3 | 109/4 | 110/4 | 150/5.4 | 220/8 | 187/6.8 | 245/8.8 | 310/11.2 | 269/9.7 | 341/12.3 | 421/15.2 | 372/13.4 | 459/16.6 | 556/20 | 827/30 | 970/35 | 1125/40 | |
| Injection Rate | cm³/sec | 117 | 147 | 192 | 160 | 218 | 222 | 151 | 197 | 250 | 180 | 228 | 281 | 211 | 260 | 315 | 260 | 305 | 354 | |
| Screw Stroke | mm | 140 | 160 | 180 | 200 | 220 | 240 | 300 | ||||||||||||
| Screw Rotation Speed | rpm | 0-370 | 0-235 | 0-220 | 0-240 | 0-240 | 0-240 | |||||||||||||
| CLAMPING UNIT | Clamping Force | ton | 120 | 160 | 200 | 250 | 300 | 400 | ||||||||||||
| Min.Mold Height | mm | 300 | 350 | 400 | 400 | 450 | 450 | |||||||||||||
| Opening Stroke | mm | 300 | 300 | 350 | 350 | 400 | 400 | |||||||||||||
| Max.Opening Distance | mm | 600 | 650 | 750 | 750 | 850 | 850 | |||||||||||||
| Diameter Of Rotary Table | mm | 1200 | 1400 | 1400 | 1600 | 1600 | 1800 | |||||||||||||
| Ejector Stroke | mm | 100 | 150 | 150 | 150 | 150 | 150 | |||||||||||||
| Ejector Force | ton | 4 | 7 | 11 | 11 | 11 | 11 | |||||||||||||
| OTHERS | Max.Hydraulic Pressure | kg/cm² | 140 | 140 | 140 | 140 | 140 | 140 | ||||||||||||
| Oil Tank Capacity | L | 400 | 500 | 600 | 700 | 750 | 700 | |||||||||||||
| Pump Motor Power | kW | 15 | 18.5 | 22 | 30 | 30 | 37 | |||||||||||||
| Barrel Heating Power | kW | 10 | 12 | 14 | 17 | 20 | 22 | |||||||||||||
| Worktable Height | mm | 930 | 960 | 1000 | 1000 | 1100 | 1100 | |||||||||||||
| Machine Weight | kg | 9000 | 10000 | 12000 | 15000 | 17000 | 24000 | |||||||||||||
| Machine Dimensions | m | / | / | / | / | / | / | |||||||||||||
